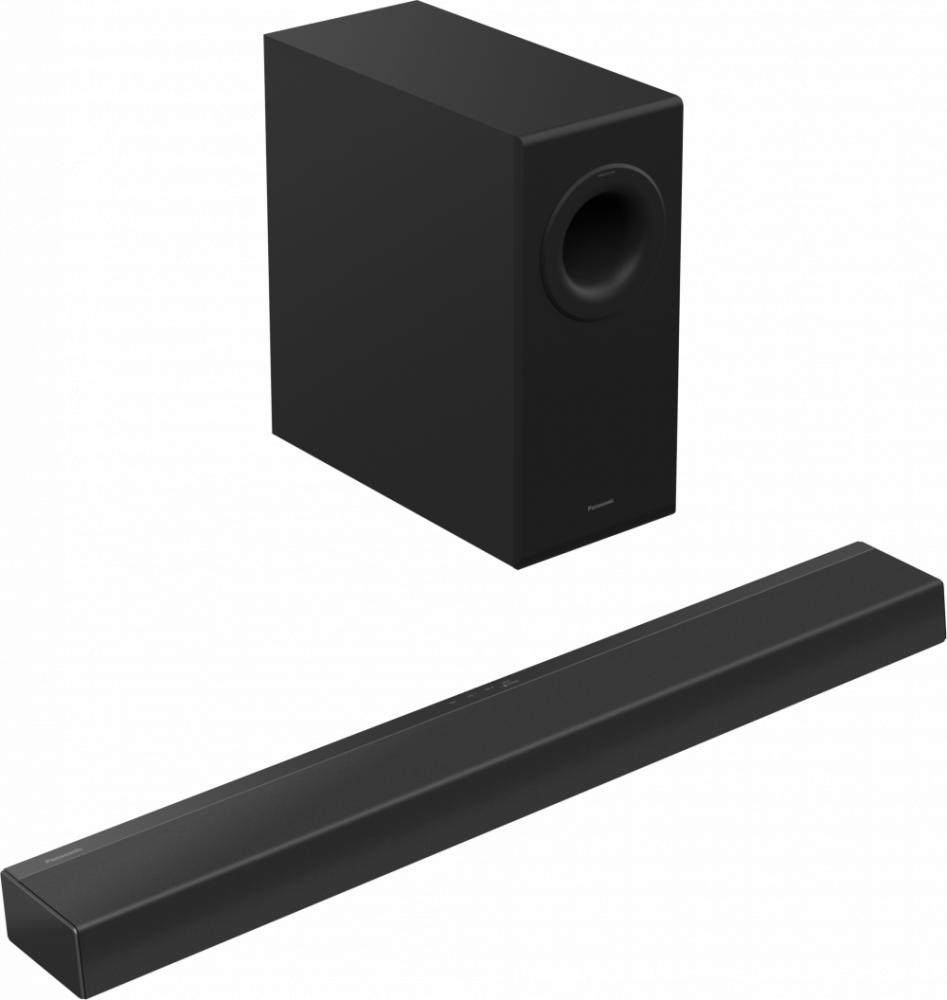

Panasonic SC-HTB490 HEMMABIOSYSTEM

Amplifier

Amp Type

2.1 ch

RMS Output Power

Total RMS Stereo Mode Power

320 W

Front Speaker (Left / Right)

80 W + 80 W (1 kHz, 4 Ω)

Subwoofer

160 W (100 Hz, 3 Ω)

Speaker System

Front Speaker (Left / Right)

Type

1 way, 1 speaker system (Bass reflex)

Speaker Unit

Full Range 4.5 x 12 cm, Cone type x 2 pcs

Bass Expand

Bass Reflex Port

Subwoofer

Type

1 way, 1 speaker system (Bass reflex)

Speaker Unit

Woofer 16cm, Cone Type x 1pc

Bass Expand

Bass Reflex Port

Wireless

Yes

Network

Bluetooth®

Version

Bluetooth® Ver 4.2

Class

Class 2

Codec

SBC

Bluetooth Standby

Yes

Connectivity

Multi-Pairing (MAX 8 Devices)

WiFi

Standard

-

Frequency Band

-

Chromecast built-in

-

Terminal

HDMI

Input

-

Output

x 1 (ARC)

Audio Input

Optical Input

x 1

Coaxial Digital Input

-

Analog Input (Pin Jack / φ3,5)

-

Other

IR System Terminal

-

USB Port

x 1 (Play)

LAN

-

Function

Sound Function

Surround

Virtual Surround

SOUND MODE

Standard, Cinema (Surround), Sports(Surround), Music, News

Bass Boost

-

Subwoofer Level Adjustment

Yes (5 levels)

Clear-mode Dialog

-

Dialog Level Control

-

Low-volume Mode

-

Auto Gain Control

-

Direct music mode with remote control

-

Auto LIP Synchronization with HDAVI Control

-

Decoder Function / Format

LPCM

Yes (Max 2ch)

Dolby Digital

Yes

Dolby Digital +

-

Dolby True HD

-

Dolby Atmos

-

DTS Digital Surround

Yes

DTS ES

-

DTS 96/24

-

DTS-HD HR

-

DTS-HD High Resolution Audio

-

DTS-HD Master Audio

-

DTS : X

-

DTS Virtual : X

-

HDMI Function

CEC

Yes

Audio Return Channel(for HDMI Output)*¹

Yes

LPCM Multi Channel Input (HDMI Input)

-

1080p, Deep Color, x.v. Color

-

4K Pass through

-

FULL HD 3D COMPATIBLE

-

HDMI UP Conversion

-

HDR10 Pass Through

-

HDR10+ Pass Through

-

Dolby Vision Pass Through

-

USB Function

USB Host Play

Yes

Service Use

Yes

Customer Software Update

Yes

USB Standard

USB 2.0 full speed

Charging

-

Playback Format

MP3

Main Unit Setting

Wall Mountable

Yes

Matching TV Size

43 inch and above

General

Main Unit

Power Supply

AC 220 - 240 V, 50 Hz

Power Consumption *² Normal Use

24 W

Power Consumption *² Network Standby Off

0.5 W

Power Consumption *² Network Standby On

2 W

LED Indication

Yes x2 (Multi Color)

Subwoofer

Power Supply

AC 220 - 240 V, 50 Hz

Power Consumption *² Normal Use

22 W

Power Consumption *² Network Standby

0.5 W

Dimmer

Bright, Dark

Auto OFF

Yes

Dimension

Main Unit (W x H x D)

For table top layout

800 x 56 x 101 mm

For table top layout with High adjustable legs

-

For table top layout with Low adjustable legs

-

For wall mount layout

800 x 64 x 108 mm

Subwoofer (W x H x D)

171 x 382 x 363 mm

Weight

Main Unit

1.9 kg (approx.)

Main Unit (Wall Mount)

2.0 kg (approx.)

Subwoofer

5.7 kg

Color

Black

Accessories

Remote Control

Yes

Dry Batteries for Remote Control

Yes (Button Type)

AC Cord

Yes (Main Unit 1.5m / Subwoofer 1.2m)

Wall Mount Bracket

Yes

IR System Cable

-

Optical Degital Cable

-

Operating Instruction

WEB OI

Quick Setting Guide

-

Note:

*1 ARC　(Audio Return Channel) compatible TV is required.

*2 Specifications are subject to change without notice. All numbers given here are approximate.
